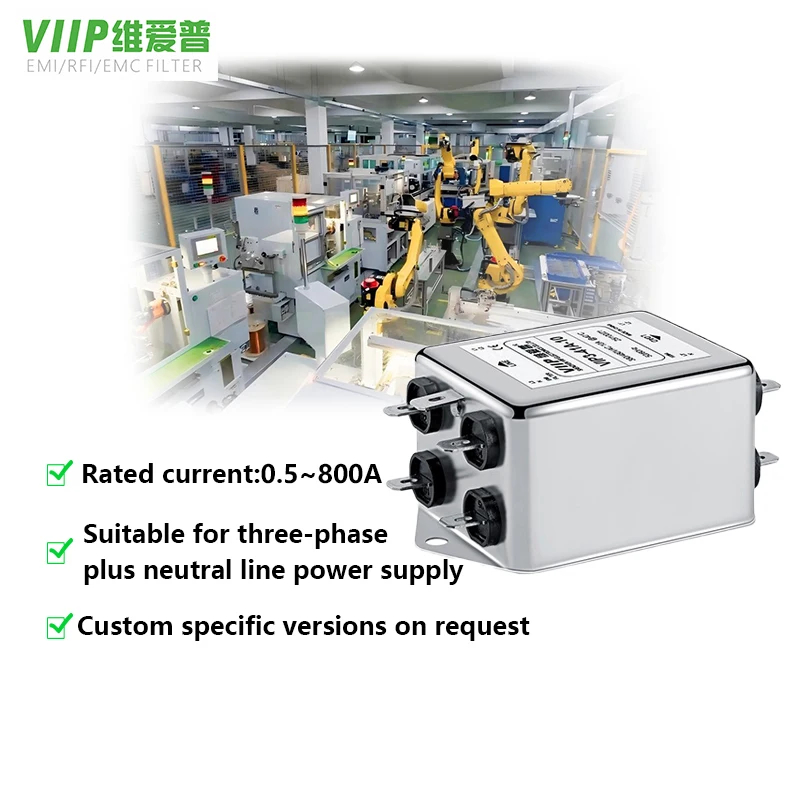

380V Input AC EMI Filter with 20A Rated Current and 440V Rated Voltage for Building Automation

نام تجاری:	VIIP
شماره مدل:	VIP3-41A
مقدار تولیدی:	1 عدد
قیمت:	15USD
جزئیات بسته بندی:	333318
شرایط پرداخت:	T/T، وسترن یونیون

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

CE TUV UL ROHS REACH

امپدانس ورودی:

500VDC/100MOHM MIN

ولتاژ نامی:

110/250 VAC

جریان نامی:

0.5A-800A

تایپ کنید:

فیلتر EMC

از دست دادن درج:

60dB-90dB

گواهی:

CE ROHS,CE CQC,UL.TUL

قابلیت ارائه:

2000 عدد در 10-15 روز

برجسته کردن:

380V Input AC EMI Filter,20A Rated Current EMC Filter,440V Rated Voltage Low Pass Filter

20A Rated Current EMC Filter

440V Rated Voltage Low Pass Filter

توضیحات محصول

380V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

The 380V Input AC EMI Filter is designed for building automation systems and print machine hardware equipment, featuring a compact structure for space-limited applications.

Quick Specifications

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certifications: UL, TUV, ISO9001, CE, ROHS

Product Description

This three-phase three-line power supply EMI filter features a compact structure for simple, time-saving installation. Its space-efficient design makes it ideal for applications with limited space while offering high cost-effectiveness.

Applications

Widely used in various electrical units including print machines, packing machines, textile equipment, industrial air conditioners, UPS systems, and medical equipment.

Our Advantages

Global Sales Network

Products exported to Europe, the United States, South Korea, Southeast Asia and other regions.

Advanced Hardware Equipment

Fully automatic magnetic material detection equipment and production lines with anti-interference magnetic core production base.

Integrated Technical Service

Combining R&D, production, sales of anti-interference (EMC) electronic components with EMC testing services.

Quality Management

Strict quality standards implementation with continuous improvement processes focused on customer requirements.
